Description

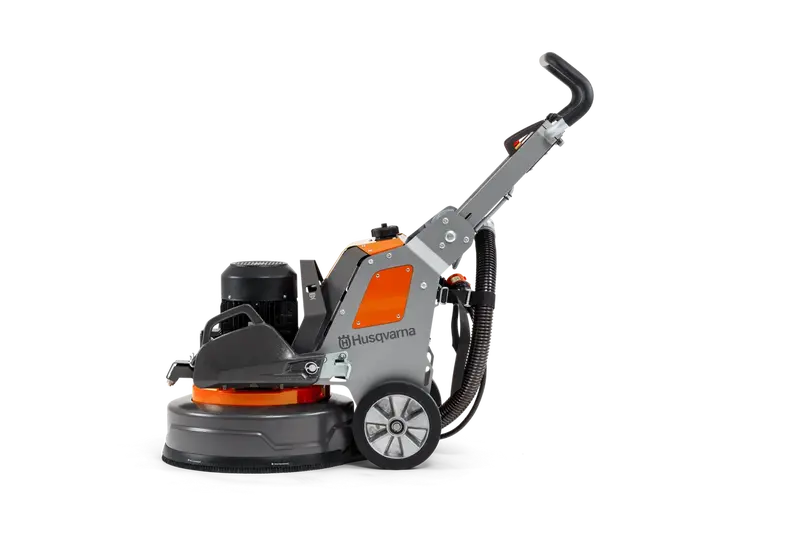

The PG 5 is a compact and powerful planetary floor grinder with three grinding discs and a 4 kW motor.
It is suitable for everything from removing coatings to grinding and polishing concrete or natural stone. The machine also features a mist cooler system that cools the diamond tools during operation, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). For convenience, the chassis can be easily separated from the grinding head and the weights dismounted prior to transport.
The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.
Optional: Water kit
Tool holder: EZchange™ Airflow
Higher removal rate with mist cooler system
Sealed to last
Protected electronics
Improved dust pick-up
Ergonomic handle
Time saving tool change
Adjustable grinding pressure
Magnetic LED lights
Fleet ready
Quick release of tool holders
Fits into most standard cars
EZchange™ Airflow tool holders
| Engine Power (As rated by the engine manufacturer) | 5.4 hp |
| Motor | |
| Power source | Corded |
| Rated input power | 5.4 hp |
| Phases | 1 ph |
| Voltage | 200-240 V |
| Rated current | 30 A |
| Frequency | 50-60 Hz |
| Pins | 2P+E |
| Equipment | |
| Grinding width | 20.3 in |
| Number of grinding discs | 3 |
| Direction of rotation | Both directions |
| Grinding disc diameter | 9.1 in |
| Grinding disc speed min | 353 rpm |
| Grinding disc speed max | 1,176 rpm |
| Transmission | |
| Type of operation | Push |
| Dimensions | |
| Product size length | 35.7 in |
| Product size width | 22.1 in |
| Product size height | 28.4 in |
| Weight | 403 lbs |
| Packaging length (Calc) | 43.307 in |
| Packaging width (Calc) | 23.622 in |
| Packaging height (Calc) | 39.37 in |
| Article gross weight (Calc) | 445.334 lbs |
